1200MM Diameter Rotary Round Disc Material Sorting Machine Stainless Steel 110V

<p>Introduction:<br>The round disc sorting machine is an important device for rotating, sorting and temporarily stacking bagged products conveyed by the finished product conveyor for the following packaging operation. It has the advantages of simple structure, convenient operation, speed controllability and stable supporting. The round disc sorting machine can be combined with other matching equipment to form a packaging production line and is suitable for the industries of food, medical, electronics, hardware, cosmetics, etc.<br>Attention:<br>Do not adjust the speed excessively to prevent the products from flying out.<br>Before and after use, clean the rotary disc thoroughly to avoid faults and accidents.<br>Be sure to disconnect the power supply before repair and maintenance.<br>Operation Method:<br>Before use, check whether all parts are intact.<br>Connect the machine to the 110V power supply with reliable grounding.<br>Turn on the power switch, the rotary disc starts rotating.<br>Use the speed regulator to adjust the rotating speed as needed.<br>After use, turn off the power switch, unplug the machine and clean it thoroughly.<br><br>Parameter:<br>Voltage: 110V<br>Diameter of Rotary Disc: 120CM(47.2")<br>Height: 74CM(29.1")<br>Material of Rotary Disc: 304 Stainless Steel with Thickness of 3MM<br>Motor: 370W Copper Core Motor<br>Frequency Converter: 750W<br>Speed: Adjustable, 10-100M/MIN<br>Net Weight: 51.5KG(113.5LBS)<br><br>Items Included: 033322-EnzY<br>1200MM Diameter Stainless Steel Rotary Unscrambling Table Food Industry Round Disc Sorting Machine 110V</p>

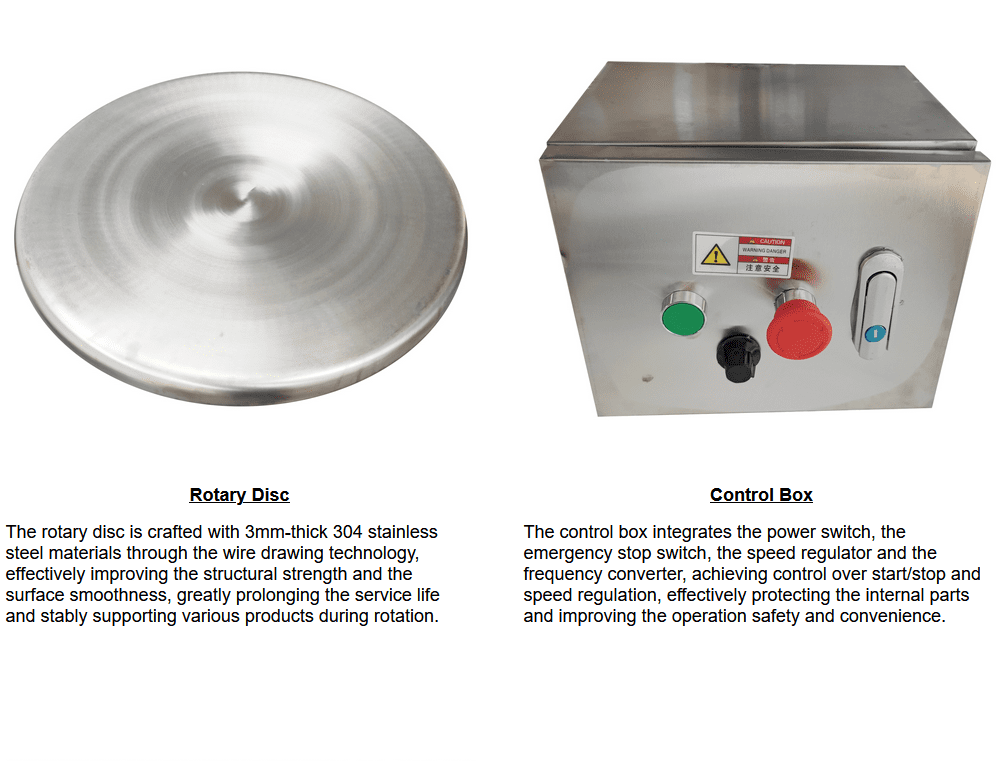

• The rotary disc is crafted with 3mm-thick 304 stainless steel materials through the wire drawing technology, effectively improving the structural strength and the surface smoothness, greatly prolonging the service life and stably supporting various products during rotation.

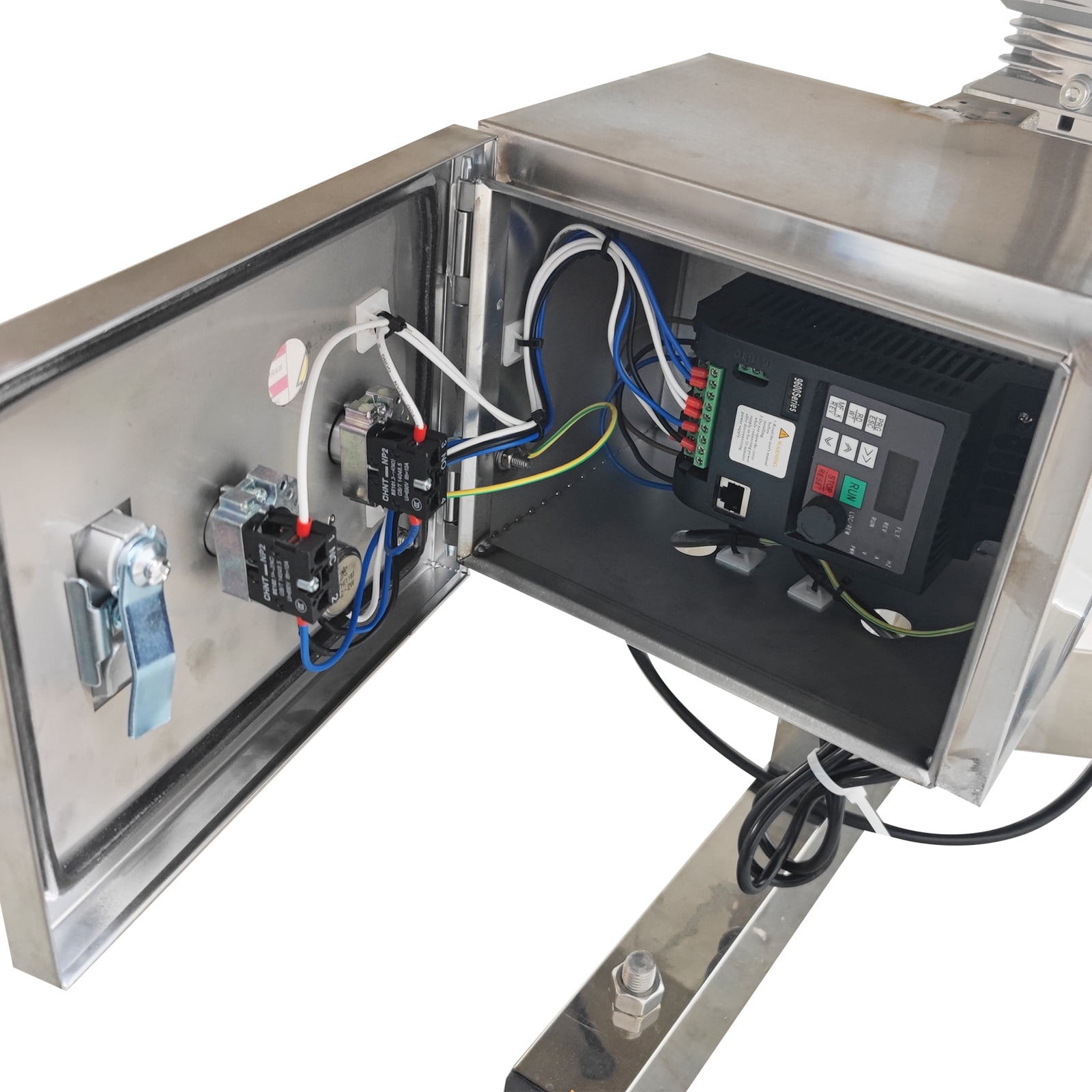

• The control box integrates the power switch, the emergency stop switch, the speed regulator and the frequency converter, achieving control over start/stop and speed regulation, effectively protecting the internal parts and improving the operation safety and convenience.

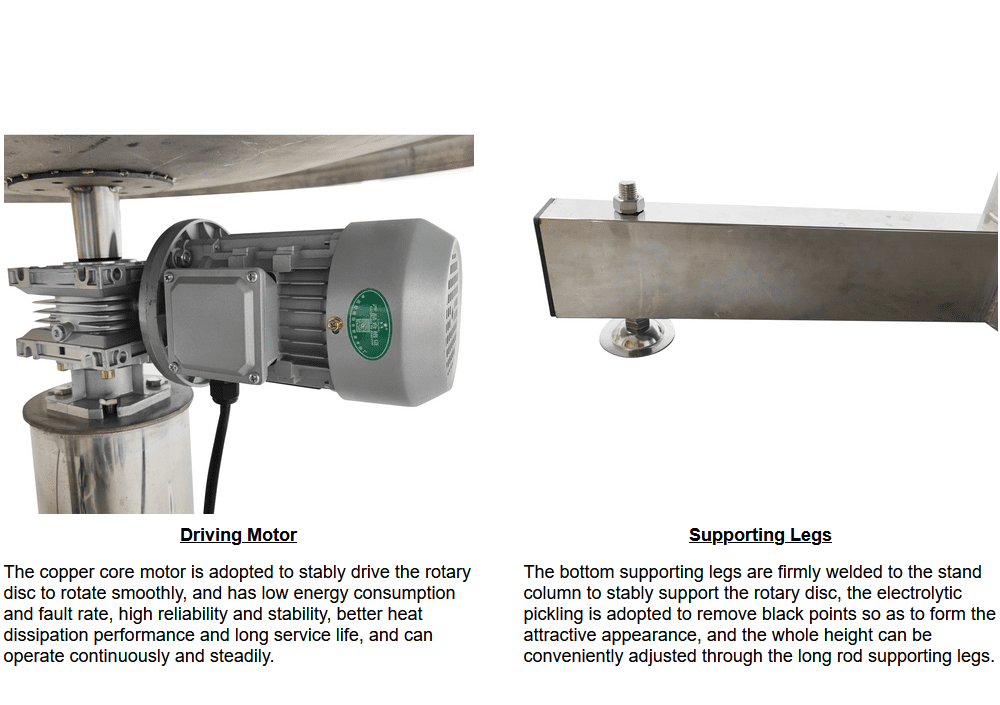

• The copper core motor is adopted to stably drive the rotary disc to rotate smoothly, and has low energy consumption and fault rate, high reliability and stability, better heat dissipation performance and long service life, and can operate continuously and steadily.
• The bottom supporting legs are firmly welded to the stand column to stably support the rotary disc, the electrolytic pickling is adopted to remove black points so as to form the attractive appearance, and the whole height can be conveniently adjusted through the long rod supporting legs.
• The round disc sorting machine is an important device for rotating, sorting and temporarily stacking bagged products conveyed by the finished product conveyor for the following packaging operation. It has the advantages of simple structure, convenient operation, speed controllability and stable supporting. The round disc sorting machine can be combined with other matching equipment to form a packaging production line and is suitable for the industries of food, medical, electronics, hardware, cosmetics, etc.
